Article number: 111985

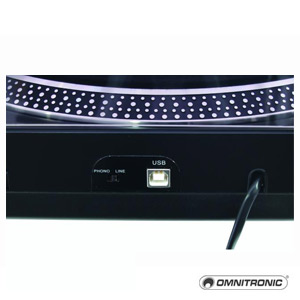

The Omnitronic DD-2520 can due to its USB-port directly be connected to your computer. By this means, you can comfortably and easily digitize all of your vinyl favorites. Of course our direct drive turntable is perfectly suited as player at home or in clubs. Wherever you will use it, this device - available in black - will convince you. The DD-2520 has a built-in USB port and additional phono preamplifier, for a high-quality and convenient digitization of analog vinyl records
Features:
• Driver installation not required, unit is identified automatically
• Sampling rates of 44.1 kHz and 48 kHz in stereo, resolution: 16 bits
• Incl. software for recording and editing
• Precision direct drive
• Delivery includes pick-up system
• 2 speeds, pitch control ±10 %
• Large start/stop button
• Strobe lamp for exact speed adjustment
• Target lamp
• Delivery includes removable dustcover
• Adjustable anti-skating
• Shock-absorbing feet
• Switchable output phono/line
• USB 1.1 support
• Suitable for Windows XP, Vista and Mac OS X
Technical Data:
• Power supply: 115/230 V AC, 50/60 Hz ~
• Power consumption: 12 W
• Type: Manual turntable
• Drive method: Direct drive
• Motor: Brushless 24 V DC motor
• Speed: 33 1/3 RPM and 45 RPM
• Change time between speeds:
33 -> 45 RPM in < 1 sec
45 -> 33 RPM in < 1 sec
• Pitch adjustment: ± 10 % via fader
• Initial torque: > 1.0 kg/cm
• Start time: < 1 sec
• Stop time: < 1 sec
• Wow and flutter: < 0.15 %
• Rumble: 55 dB DIN B
• Platter: Outer diameter 330 mm Weight 728 g
• Tonearm: S-shape with Cardan's suspension
• Tonearm length: 230.5 mm
• Overhang: 16 mm
• Adjustable stylus pressure 0-4 g
• Anti-skating range: 0-7 g
• Phono output level: 1.5-3.6 mV / 1 kHz 5 cm/sec
• Line output level: 90-216 mV / 1 kHz 5 cm/sec
• Frequency range: 20 Hz - 20 kHz
• Channel separation: > 15 dB

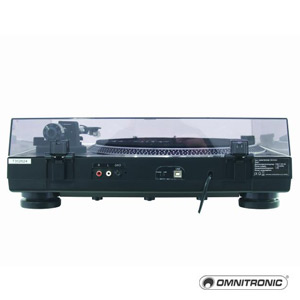

• Output connectors: RCA, USB type B
• Dimensions: 450 x 350 x 155 mm
• Weight: 11 kg
