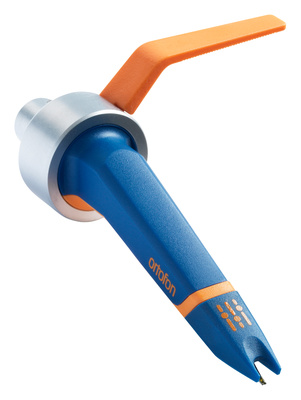

Ortofon Concorde MKII DJ Single

The Concorde DJ is considered the jack-of-all-trades, boasting accurate sound reproduction and excellent groove handling. Not only does the cartridge have a most sufficient tracking ability, it also provides the DJs with the most needed stringency and very low record wear. Specifications Channel balance at 1 kHz 1 dB Output voltage at 1 kHz, 5cm/sec 6 mV Channel seperation at 1 kHz 22 dB Channel seperation at 15 kHz 15 dB Tracking ability at 315Hz at recommended tracking force 100 μm Compliance, dynamic, lateral 14 μm/m N Stylus type Spherical Stylus tip radius R 18 μm Tracking force range 3 - 5 g Tracking force, recommended 4 g Internal impedance, DC resistance 700 Ohm Cartridge weight 18,5 g Reccomended load resistance 47 kOhm Internal inductance 450 mH Recommended load capacitance 200-600 pF Replacement stylus Stylus CC MKII DJ
